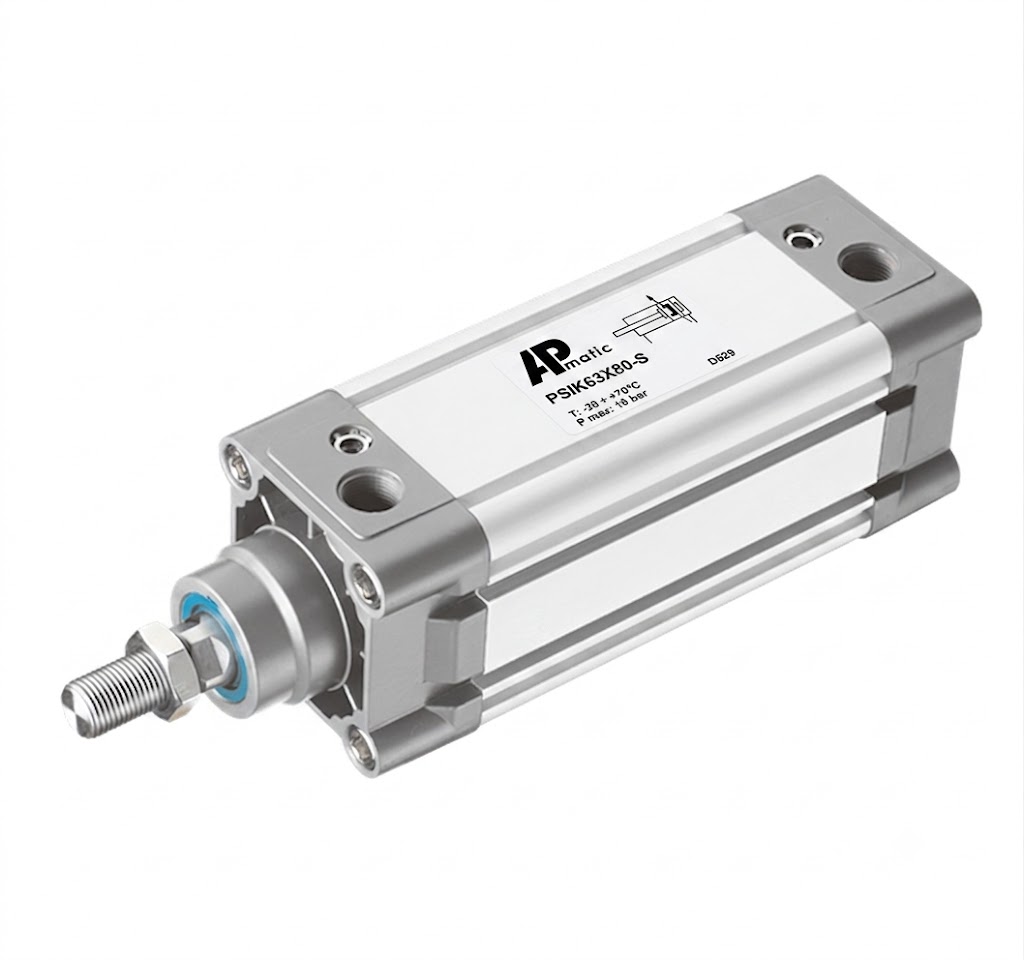

PSIC Iso 15552 cylinder available in various versions
and with a wide range of accessories:
• Configuration with or without magnet
• Single-or double acting – single-or through-rod
• Wide choice of NBR, POLYURETHANE and FKM/FPM
gaskets (for high temperatures, for low temperature)
• Special versions on request
• Fixing accessories, guide units and mechanical piston rod lock.
They are available in three series, which differ according
to the shape of the barrel and, consequently, the type of sensors
and accessories that can be mounted.
These cylinders are called series FV/FX for profile type and , VBC/LBC for tire rod round body type.

CAD 3D and download.

https://emc.partcommunity.com/3d-cad-models/sso/fvbc-fxbc-ios6431-iso15552-standard-cylinder-emc?info=emc%2Fcylinder%2Fstandard_cylinder%2Ffvbc_fxbc%2Ffvbc_fxbc_asmtab.prj&cwid=2368
